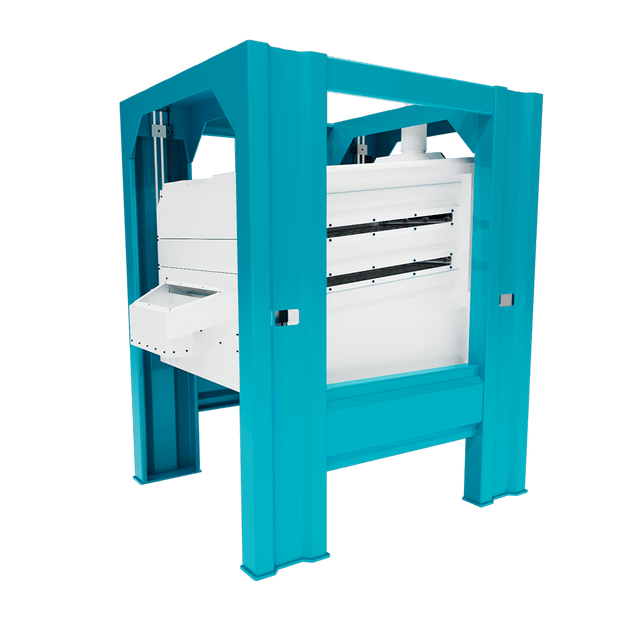

CLR 107 Grain Cleaner | 18 ton/hour | Maize

The new CLR 107 Grain Cleaner is the ideal machine for pre-cleaning and fine cleaning medium capacities maize, wheat and other grains. It is locally produced by Roff, removing the need to import and making it a cost-effective alternative with fast lead times. The screening section includes three screens.

Performance:

Pre-cleaning Maize: 15-18 ton / hour

Fine-cleaning Maize: 6-7 ton / hour

Motors @ 1.55kw 380v: 1
Screens: 3
Weight: ± 750kg
Shipping Dimensions (mm): 1700(L) X 1400(W) X 2105(H)

* - The motor warranty is covered by its local supplier

CLR 107M Cleaning Module:

Flexibility: The included frame, aspirator, and dust cyclone with fan and ducting can be used as a standalone system or incorporated into an existing grain processing plant. The optional screw-conveyor or bucket elevator intake options allow it to fit your needs.

Optional equipment:

• Screw conveyor for intake and outlet
• Bucket Elevator for intake and outlet
• Double inline Magnet to remove metal
• Airlock/Airvalve for a low dust environment
• Bagging points for dual bags and fast switchover to reduce spillage
• Spouting and clamps

Multi-purpose:

Quickly swop the screens to allow cleaning of various products. The fan and aspirators are fully adjustable to allow fine-tuning and optimal cleaning.
