Screw Conveyor 45 degree | 3 to 7 m | 125mm | 8 ton/hour | 1.5kW

Cost-effective conveying
Easy installation
Minimum maintenance required

ZAR 17,200.00
Shipping calculated at checkout.
Length
Roff Milling  |  SKU: AUG 125 000 213

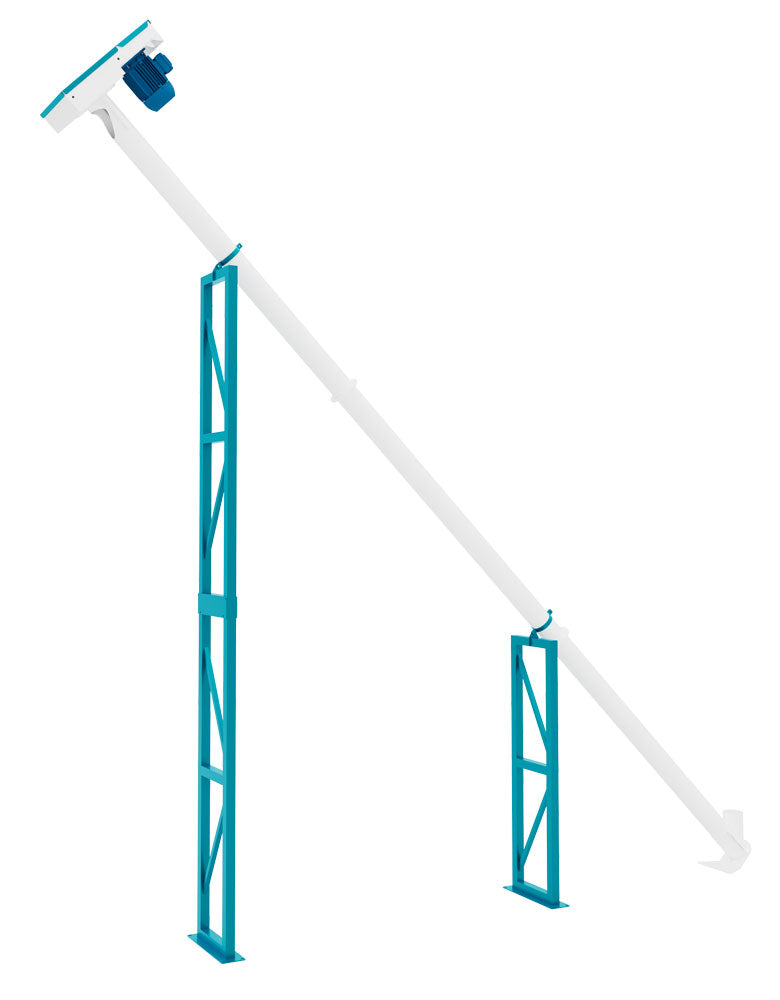

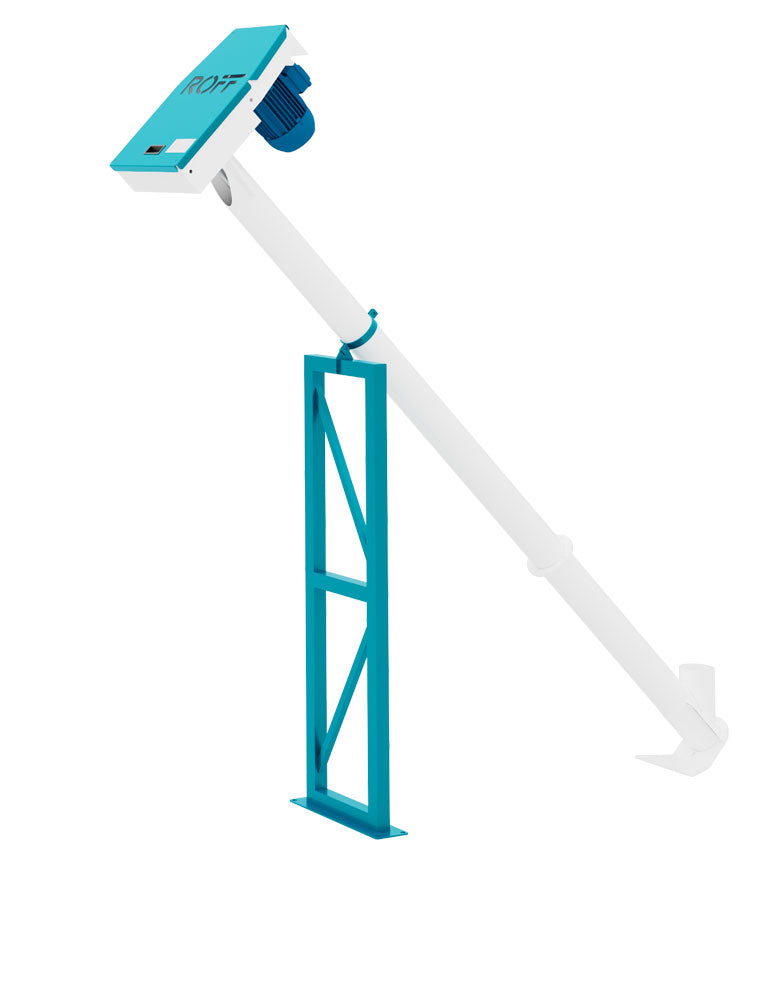

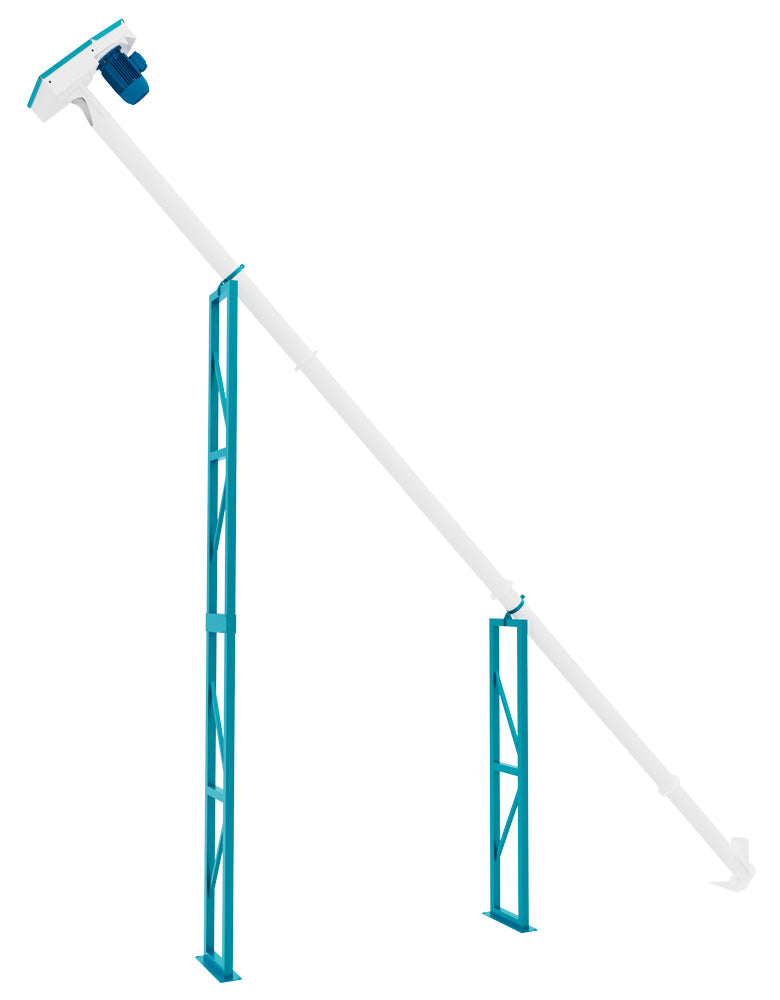

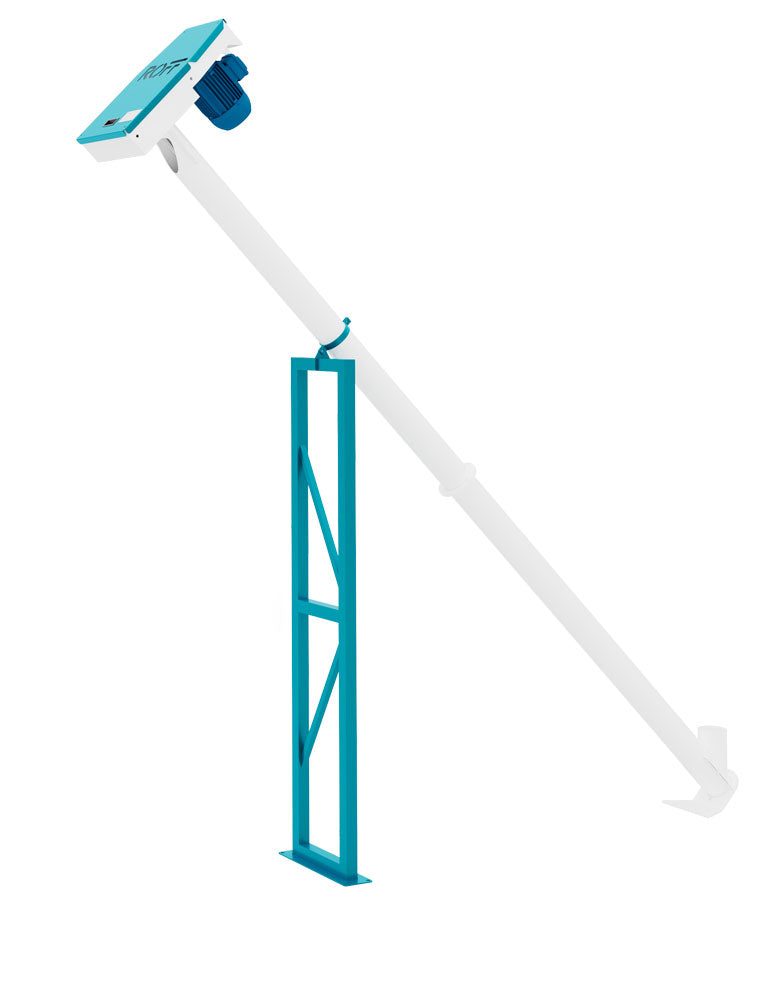

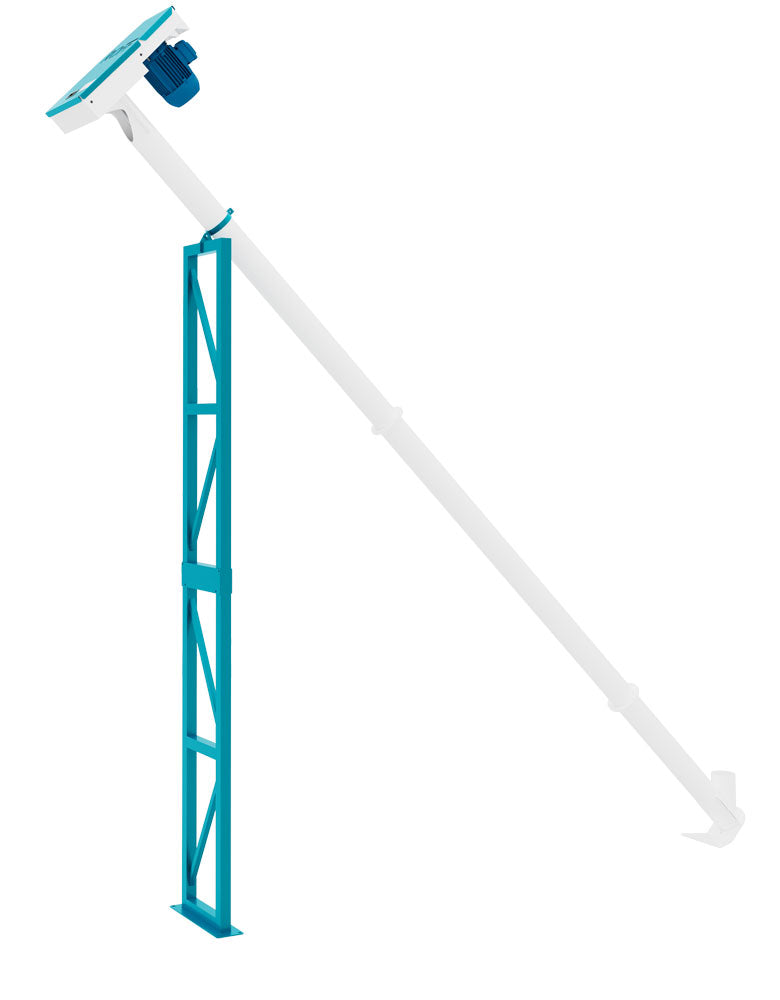

This screw type conveyor (or Auger) is widely used to convey granular or powdery products at various angles from the horizontal to a 60-degree plane. This machine consists of an inlet hopper, outer casing pipe and a rotating spiral.

  • 125mm diameter
  • Drives can be changed easily
  • Easy installation and minimum maintenance required
  • Gear drive available on request

Available add-ons: DOL Starters, Inlet Hoppers, 120mm and 150mm diameter pipe connection covers, Magnets, Down Chute, Table Bag Feed Inlet Hopper, Inlet Slides

Model Sizes in millimeter:

Model A B C D E F G H
3m 3000 1950 120ø 120ø 339 2051 288 500
4m 4000 2660 120ø 120ø 339 2755 288 500
5m 5000 3367 120ø 120ø 339 3463 288 500
6m 6000 4071 120ø 120ø 339 4170 288 500
7m 7000 4781 120ø 120ø 339 4877 288 500
