Roff Aspirator Leg 450, 600 & 1000 | High Capacity Separation

Easy adjustments
Adjustable airflow and channel
Inspection windows

ZAR 15,000.00
Shipping calculated at checkout.
Size
Roff Milling  |  SKU: ASP 450

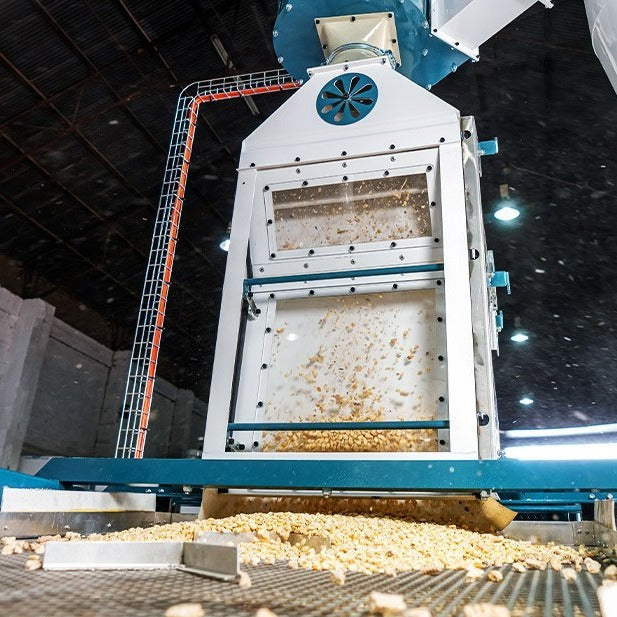

The aspirator is used to separate products with large variations in bulk densities. A typical example is the separation of bran from maize grit during the maize milling process.

The adjustable chamber size allows for optimal volume control. A valve at the chamber's top enables control over the air velocity.

  • Easy adjustments
  • Adjustable airflow and channel
  • Inspection windows
  • Optional feeder roller with motor for even distribution of the product
  • Easy installation and 'low maintenance'
  • 12-Month Manufacturer Warranty***

Capacity and Specifications:

Aspirator Model

Air requirements

Motor**

Weight



CFM*



kg

450

450 – 550

0.18kW

60

600

600 – 750

0.18kW

70

1000

1000 – 1250

0.18kW

180

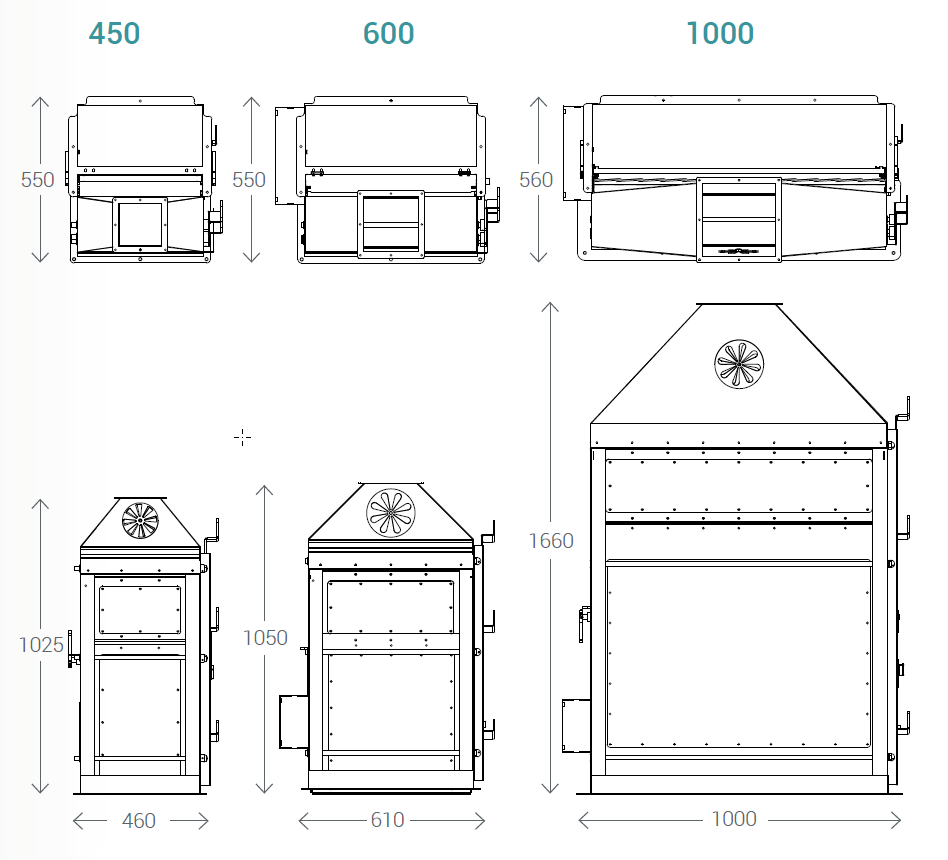

Aspirator Model Shipping Dimensions
L x W x H mm
450 460 x 550 x 1025
600 610 x 550 x 1050
1000 1100 x 560 x 1660


* Cubic feet per minute

** Motor only applies if feeder roll is included

*** The motor warranty is covered by its local supplier

Frequently Asked Questions

Shipping

What countries do you ship to?

We currently ship worldwide, but items purchased online can only be shipped to South
Africa.

To enquire about shipping to a different destination, please contact us
or alternatively select pickup and arrange your own shipping.

How long will it take to receive my order?

Normally it takes 2-5 days for South African orders. International shipping times depend on the products and destination.

Returns and Refunds

How do I return a product?

Items must be returned within 21 days after receiving your order by logging a return request by email to sales@roff.co.za.

Items must be returned in the same condition in which they were received, be unused.

A 20% handeling fee will be charged on returned items.

Refer to our refund and return policy for more info.

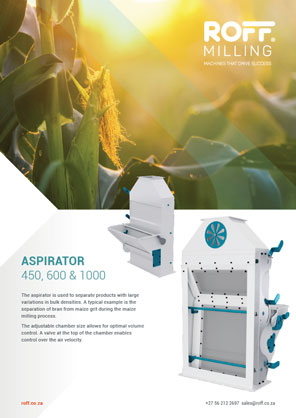

Aspirator Brochure

Still have questions?

Roff Aspirator Legs
Roff Milling

Roff Aspirator Leg 450, 600 & 1000 | High Capacity Separation

Capacity in ton per hour

10

Extraction rate

N/A

Features

Easy adjustments
Adjustable airflow and channel
Inspection windows

Leadtime

7 to 14 days

Footprint (square meters)

N/A

Products

N/A

Material

Mild Steel - Painted

Roll Width

N/A

Wire Diameter (Wire Thickness)

N/A

Mesh Count (per Inch)

N/A

Aperture (Hole Size)

N/A

Size

  • 450mm Aspirator without feeder
  • 600mm Aspirator without feeder
  • 600mm Aspirator with feeder
  • 1000mm Aspirator with feeder
