Roller fluting & custom rollers — restore your mill's performance
Precision refluting, replacement rollers and shaft work for Roff mills and selected other makes — servicing rollers up to 1.5 metres in length from our workshop in Kroonstad.
INTRODUCTION
Sharp rollers. Better extraction. More profit.
Your roller mill is the heart of your milling operation, and the condition of your fluted rollers directly determines how efficiently it runs. Over time, the grooves on your break and reduction rollers wear down. When that happens, your mill works harder, uses more power, and produces less meal from every ton of maize.
Roff’s professional fluting service restores your rollers to their correct profile — or supplies brand-new custom rollers and shafts when a replacement is the better option. We service rollers from Roff mills and from selected other manufacturers.
Why roller condition is one of your biggest profit levers
The flutes — the precisely cut grooves on your break rollers — do the critical work of cracking the maize kernel open and separating the starchy endosperm from the bran and germ. When those grooves are sharp and correctly profiled, the separation is clean. When they’re worn, everything downstream suffers.
How to tell when it’s time to reflute
-
1. Your extraction rate is dropping
You’re tracking your extraction numbers and seeing a downward trend that isn’t explained by a change in your maize quality, moisture content, or blend.
-
2. Product quality is inconsistent
Your speck count is rising, fat or fibre test results are creeping up, or your meal
texture is less uniform than it should be. These are signs that bran and germ
aren’t being separated cleanly at the break stage. -
3. You can see the wear
Inspect your roller surfaces. If the flute edges look rounded, chipped, or polished smooth — or if you can’t clearly see the groove profile without a magnifying glass — the cutting edges have worn past their effective life.
-
4. Energy consumption is increasing
Your power draw per ton of throughput is higher than normal. As fluting dulls, the rollers shift from cutting to pressing, which demands more energy for the same result.
-
5. Unusual noise or vibration
A change in the sound or vibration of your roller mill during operation can indicate uneven wear across the roll surface. Don’t ignore it. Unstable flow rates and more frequent choke-ups are all warning signals.
-
6. You’re over-compensating with settings
If you’ve been gradually tightening your roll gap beyond normal operating range, or increasing feed rate to maintain output, the rollers may be masking a performance problem that settings alone can’t fix.
-
7. It’s been longer than the recommended service interval
Even if none of the above symptoms are obvious yet, rollers have a finite service life. Regular refluting on a planned schedule is the most cost-effective approach.
-
Tip: Your mill log should record extraction rates, test results, and any sub standard machine performance at every shift. If you’re keeping good records, the data will tell you when it’s time — often before the symptoms become obvious on the floor.
THE ROFF FLUTING SERVICE
What Roff’s fluting service covers
Roller refluting

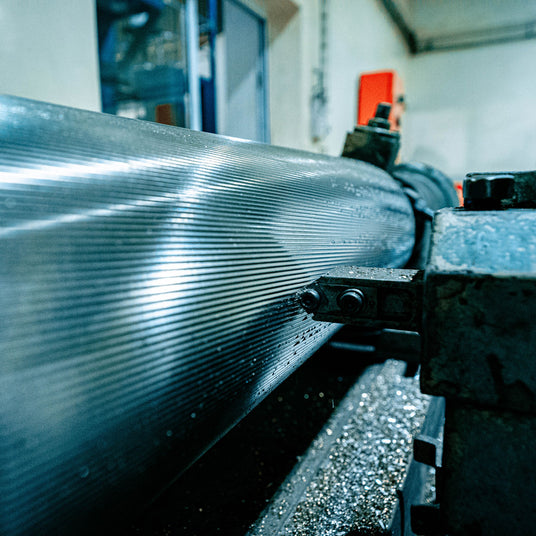

We precision-cut new grooves into your existing rollers, restoring them to their original flute profile — or to an updated specification if your milling requirements have changed.
The process
For Roff mill clients, rollers are removed as part of a scheduled service visit. Non-Roff clients arrange their own removal, and we collect from anywhere in South Africa.

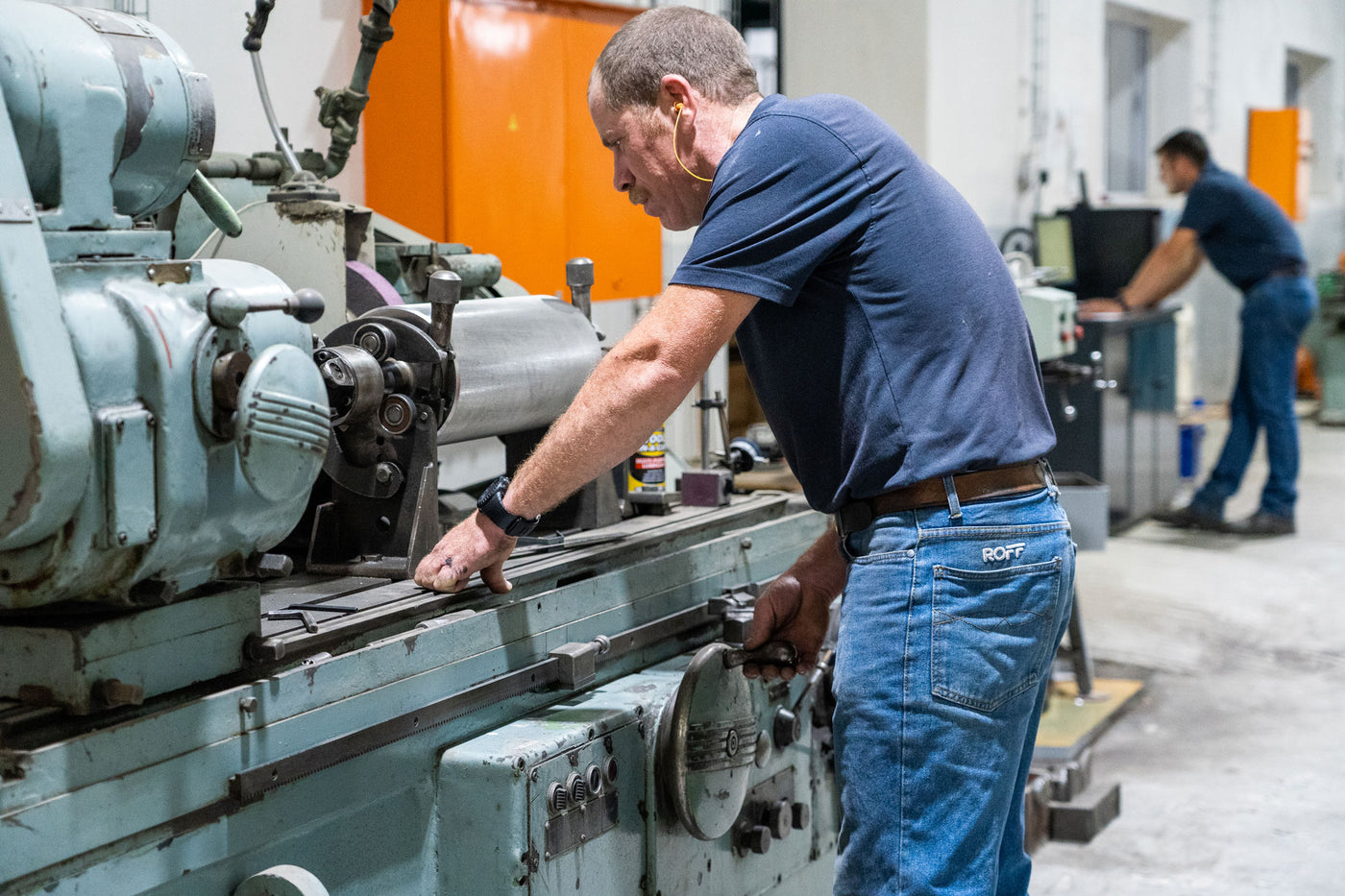

Once at our Kroonstad workshop, every roller is inspected for defects — bent shafts, cracks, or wear beyond its usable life — before any fluting work begins. If the roller passes inspection, it is fluted to the agreed-upon specification.
Each roller is then quality-checked using an optical fluting test to verify accuracy before being packaged and shipped back to you.
Typical turnaround: Between 4 to 6 weeks depending on availability. Bookings are advised for more accurate lead times.
Custom-fit replacement rollers and shafts
When a roller is worn beyond the point where refluting is viable — or when you need additional or replacement rollers — Roff manufactures custom rollers and shafts to match your mill’s exact specifications.
This service is available for Roff mills and for equipment from selected other manufacturers. If you can supply the roller dimensions and flute specification (or send us the old roller as a reference), we can build to match.
What we can service
Don’t wait for a breakdown — plan your fluting
-
Keep a spare set of rollers
If you have a spare set of fluted rollers on-site, you can swap them into your mill immediately when the working set shows wear — and send the worn set to Roff for
refluting with zero production downtime. This is especially important for mills running extended hours during peak intake season. -
Book before the rush
Demand for fluting services peaks in the months leading up to harvest and intake season.
-
Build it into your maintenance calendar
Your annual maintenance plan should include a roller inspection and, if needed, refluting. Treat it the same way you treat bearing lubrication, sieve inspections, and
hammer mill screen replacements — as a planned operating cost that prevents far
more expensive unplanned repairs.
WHY ROFF
Why millers across Southern Africa trust Roff with their rollers
We build complete mills — so we understand yours
Roff isn’t just a fluting workshop. We design and manufacture complete maize milling plants, from intake to packaging. That means we understand how roller condition affects every stage of the process — not just the rollers themselves. When you send your rollers to Roff, they’re handled by people who know milling.
We service most brands
Whether you run a Roff SP-1, an R-40, a C-80, or a mill from another manufacturer entirely, our fluting service is available to you. If it’s a fluted roller up to 1.5 metres long, we can work on it.
Delivery across South Africa
We arrange collection and return delivery of your rollers, anywhere in South Africa.
On-site technical support
Need help beyond refluting? Roff’s service team can visit your mill for technical inspections, roll gap setting, and general performance optimisation.
Short lead-times
Typical turnaround is 4–6 weeks, depending on availability. Bookings are recommended for more accurate lead times.
Optical fluting test for consistency
Each roller is quality-checked after fluting using an optical fluting test to verify accuracy and ensure consistency.
1 m blank rollers in stock
Need a replacement roller? We keep 1 m blank rollers in stock to support shorter lead times on new rollers.
Book your roller fluting
At Roff, we offer professional roller fluting services that will restore your rollers to peak condition, helping you avoid the risks associated with wear and tear.
Frequently Asked Questions
In most cases, rollers can be refluted multiple times before they need to be replaced. The limiting factor is the thickness of the hardened outer layer of the roll. When we receive your rollers, we assess their condition and advise you on whether refluting or replacement is the better option.
Yes. We service fluted rollers from any manufacturer, as long as they are within our length capacity of 1.5 metres.
Typical turnaround: Between 4 to 6 weeks depending on availability. Bookings are advised for more accurate lead times.
To give you an accurate quote, we’ll need your mill make and model, roller length and diameter, number of rollers to be serviced, current flute specification (flutes per cm, angles, spiral) if known, whether you also need shaft work, and your preferred timeline.
If you’re not sure about the flute specification, that’s fine — send us the rollers and we can measure and advise.
Yes. We arrange collection and delivery anywhere in South Africa.
Pricing depends on roller size, condition, and the number of rollers being serviced. Contact us for a quote.
