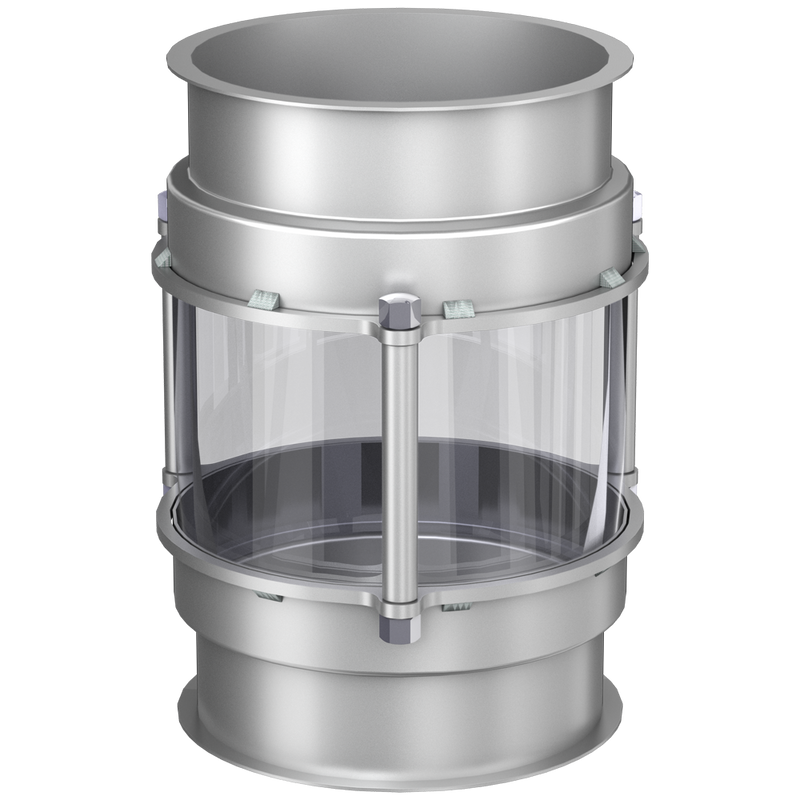

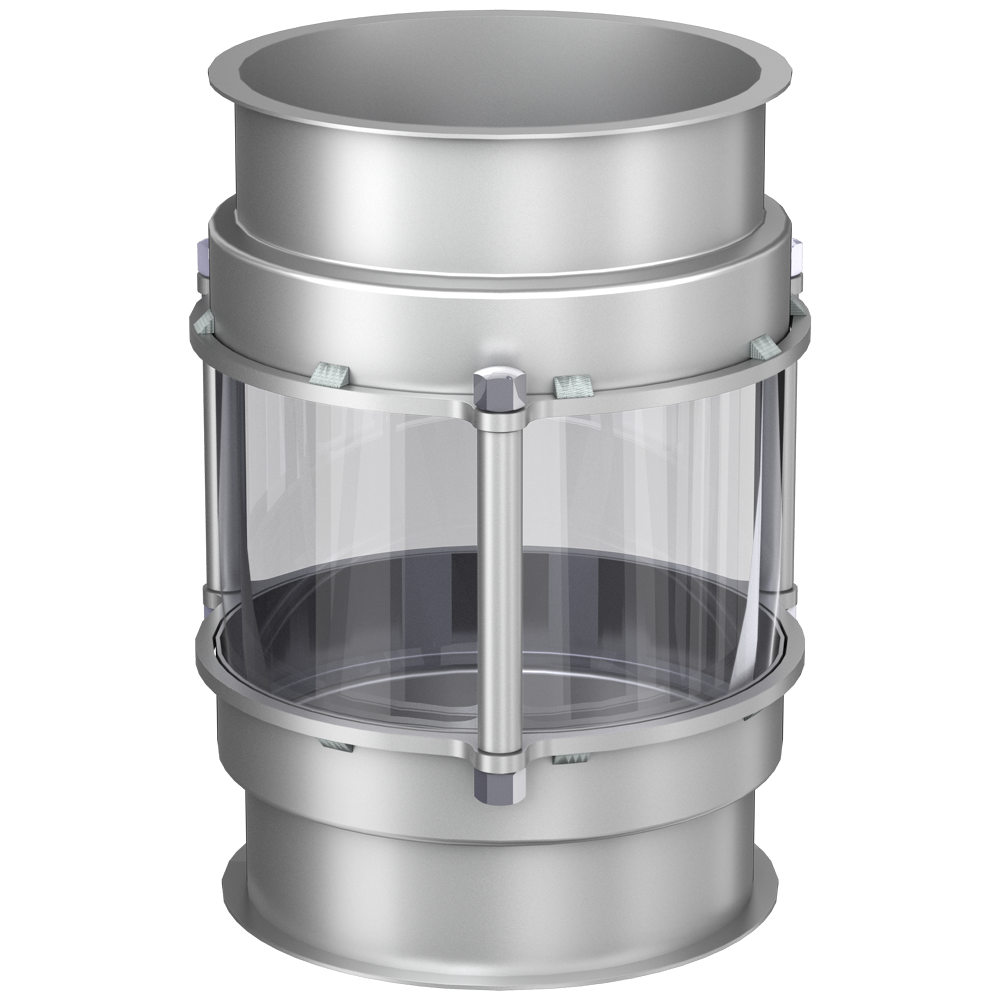

Plexi-glass pipe with braces | 200 diameter | 200 mm long, 1mm thick | Powder coated

• SKU: 11201725
• Length: 200mm (refer to specs in the catalogue)
• Inside Diameter:  199mm
• Material:  Mild Steel and Plexiglass
• Material Thickness:  1mm
• Finish:  Surface powder-coated, conductive
• Colour: Pebble Grey (RAL 7032) + Clear
• Made in Germany

Download the complete Jacob Pipe-System Catalogue * containing over 8000 parts and specifications

* - Catalog prices excluded import cost, please request a quote. Euro prices in the catalogue are Ex-stock Germany.

Leakproof up to 0.5 Bar (Using Jacob U-shaped seal and Jacob Pull-rings)

Compatible with Jacob Pull-ring and Jacob Quick Connect Pull-rings, and most other pull rings
