Cassava Hammer Mill System 750kg per hour

cassava flour milling system

CASSAVA MILL

500-750 kg/hour

  • Price range

    From ZAR 1 000 000.00
    US$ 57,200

    (excl. VAT & duties)
  • Mill footprint in metres (L x W x H)

    9m x 4m x 3.6m

  • Product range

    Cassava flour

UNLOCK THE POWER OF CASSAVA WITH ROFF'S PROVEN MILLING TECHNOLOGY

CASSAVA MILL

Efficient, affordable and simple to run – the Roff Cassava Mill turns dried cassava roots into fine flour for food security and business growth.

Why cassava

Cassava is one of Africa’s most important staple crops. It grows easily in diverse soils, resists drought and requires minimal inputs. For many communities, cassava is the backbone of food security – but bulk processing has always been a challenge.

Roff now brings proven, reliable technology to cassava processing. Designed for simplicity and efficiency, our mill turns dried roots into fine cassava flour with minimal power, space and staff requirements.

Crushing and milling process

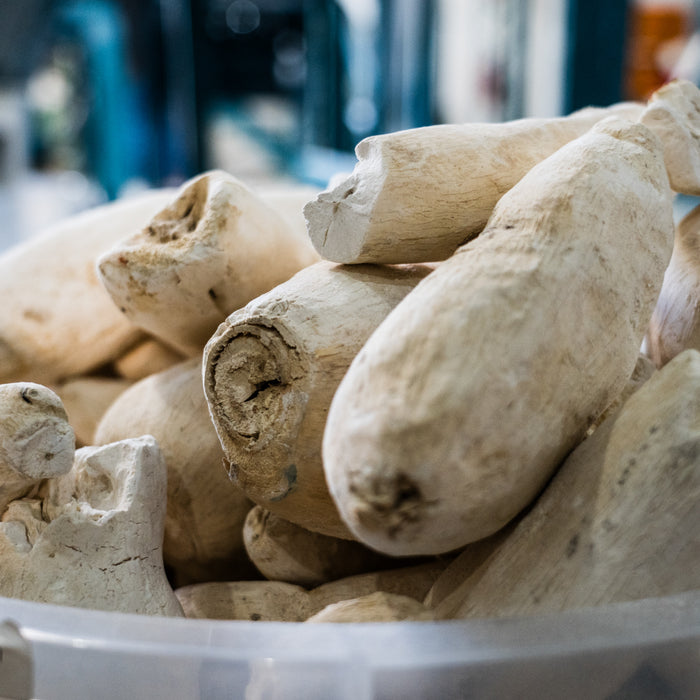

  • Washed, dried and peeled cassava roots

    Cassava roots*

    *Dried, washed and peeled

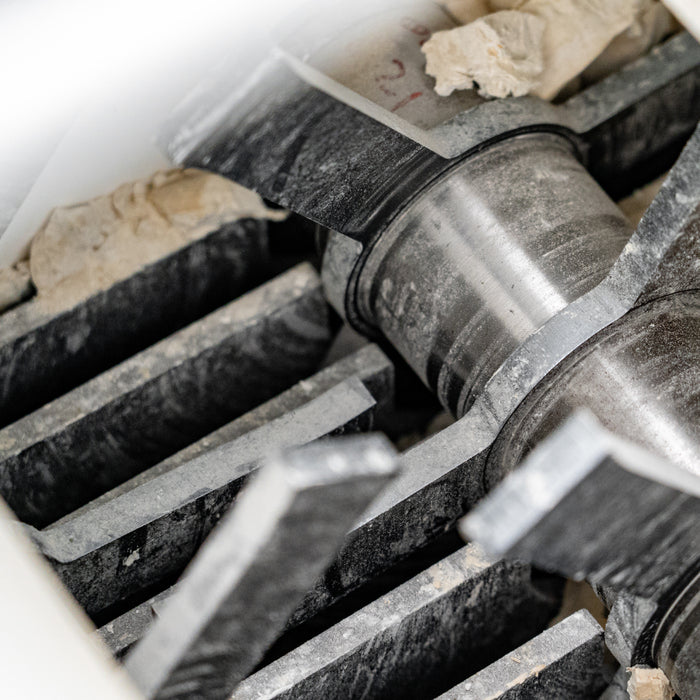

  • Rotating blades in LBX crusher crushing cassava roots

    Rotating chopping knives

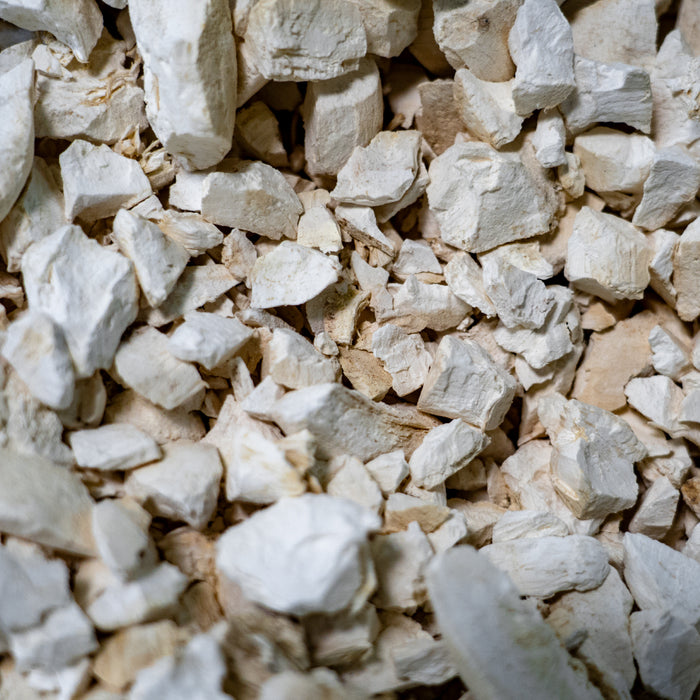

  • Crushed cassava roots

    Crushed cassava

  • Close-up of freshly milled cassava flour

    Milled cassava flour

Key features at a glance

  • Capacity

    500 - 750 kg/hr

  • Power requirements

    50kW (100 A max)

  • Footprint and building size

    Footprint: 9 m x 4 m x 3.6 m (L x W x H)
    Suggested building size: 30 m x 10 m x 5.5 m

  • Staff requirement

    1 operator and 1 - 2 packers per shift

  • Lead time and installation

    Lead time: 1 - 2 months
    Installation time: 7 days

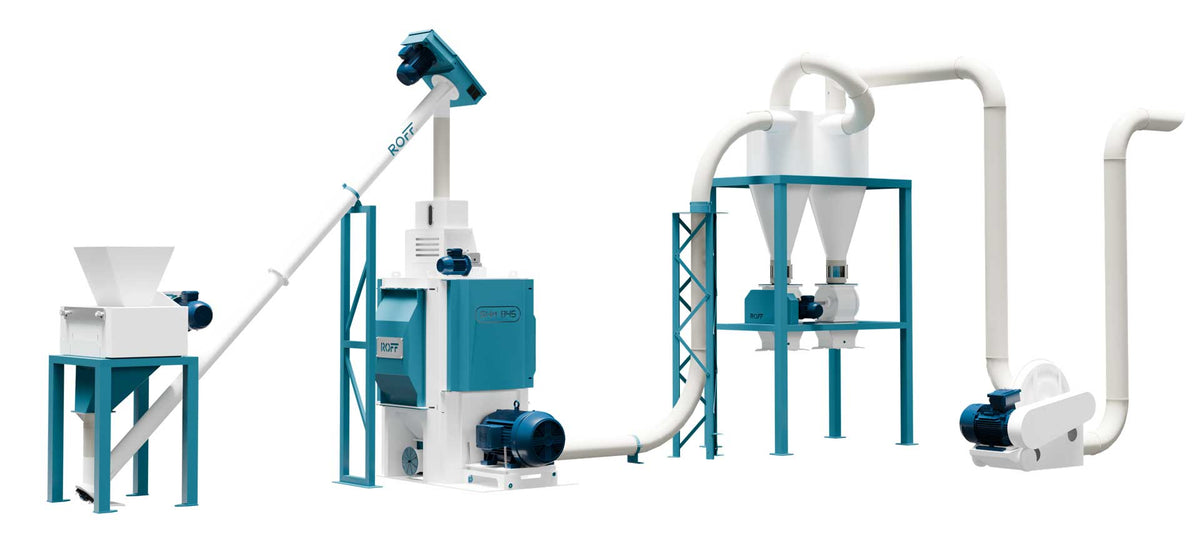

Roff cassava mill overview

How it works - proven Roff equipment

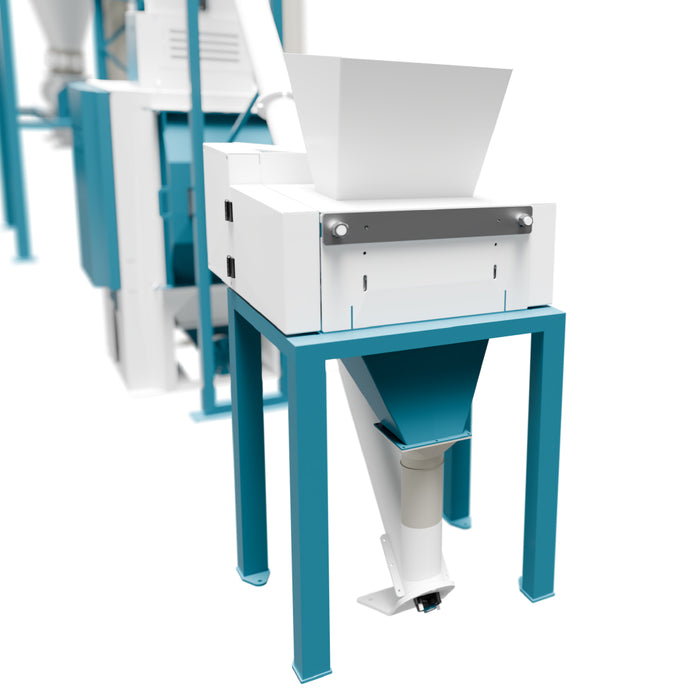

  • LBX 122 Lump Breaker

    1. Crushing

    Roff LBX 122 Lump Breaker

    Dried cassava roots are bag-fed and crushed, ensuring consistent size and smooth flow into the milling process.

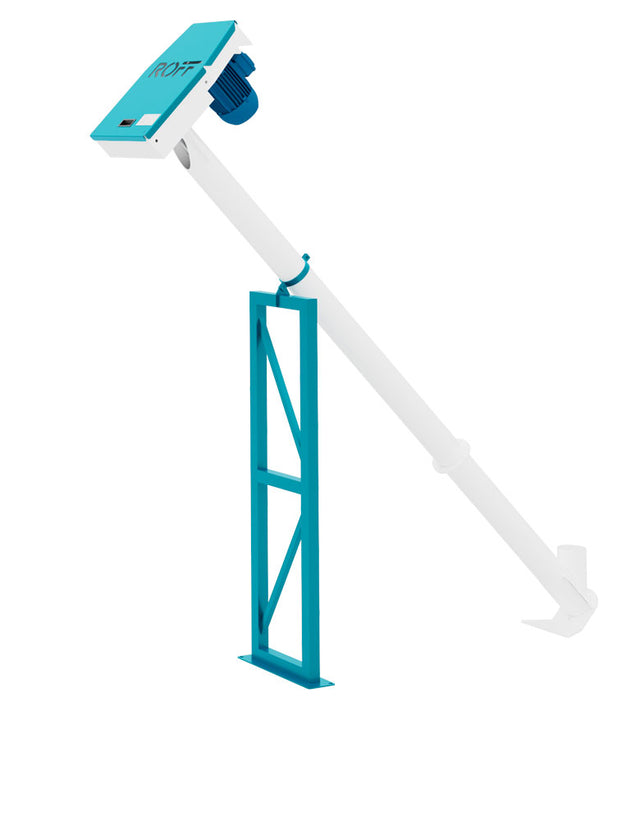

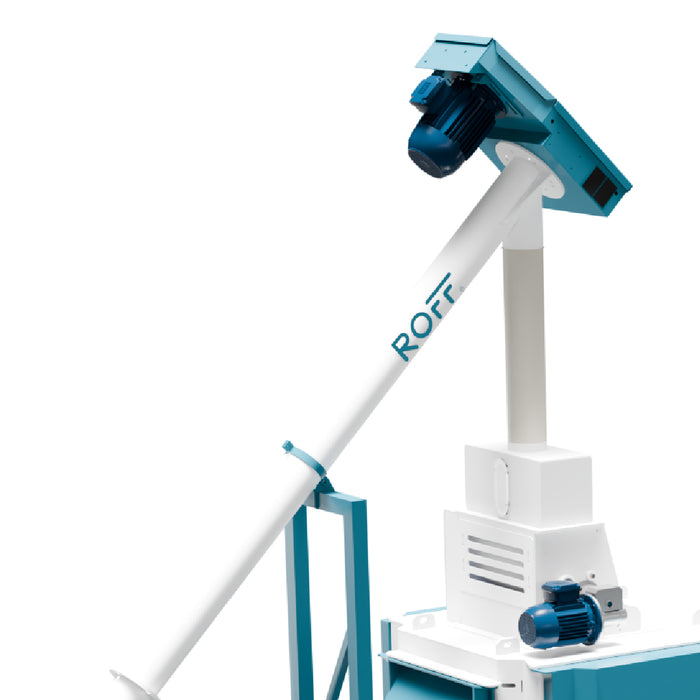

  • Screw conveyor in the Roff Cassava Mill

    2. Conveying

    Screw conveyor

    Transports crushed cassava to the milling stage.

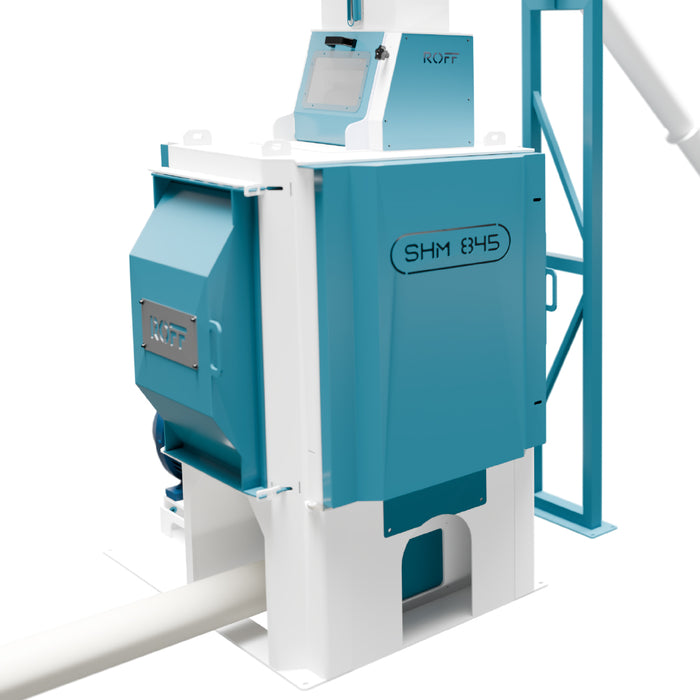

  • SHM845 hammer mill

    3. Milling

    Roff SHM 845 Hammer Mill (30 kW)

    The heart of the system: mills cassava into fine flour at 500–750 kg/h.

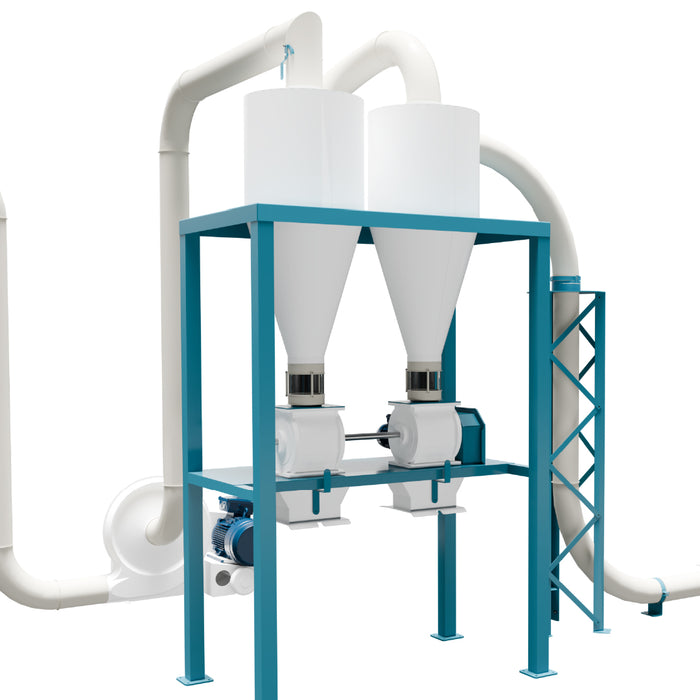

  • Dual cyclones in the Roff cassava mill system

    4. Extraction & separation

    High-pressure pneumatic conveying

    Transfers flour to dual cyclones for product separation.

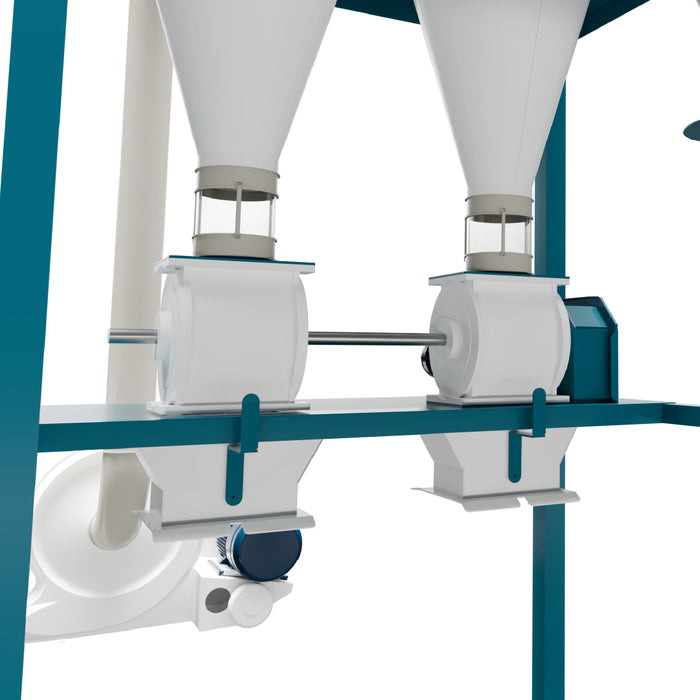

  • Bagging point on cassava mill

    5. Collection & bagging

    Dual cyclones with airlocks

    Flour is collected via dual bagging points, ensuring uninterrupted output. No dust filters required – reducing cost and maintenance.

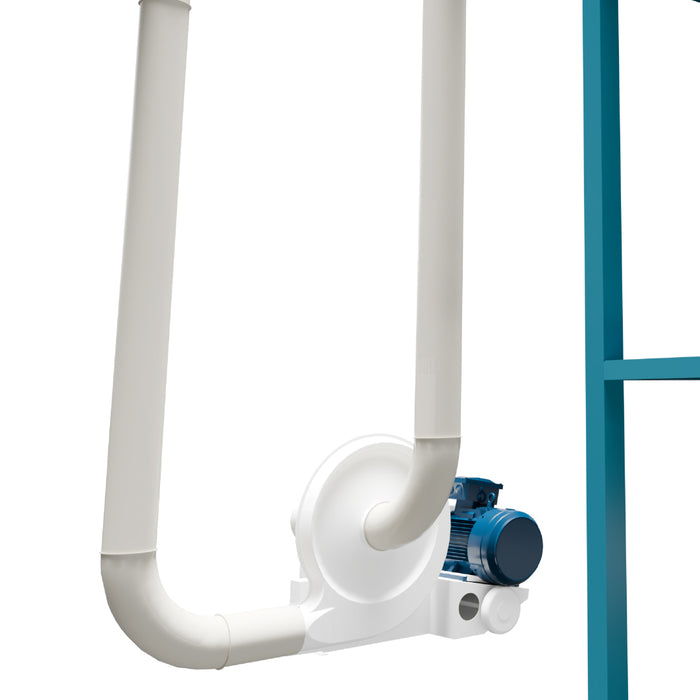

  • High-pressure fan in the Roff Cassava Mill system

    6. Airflow management

    High-pressure fan

    Ensures effective pneumatic conveying, with low dust emission.

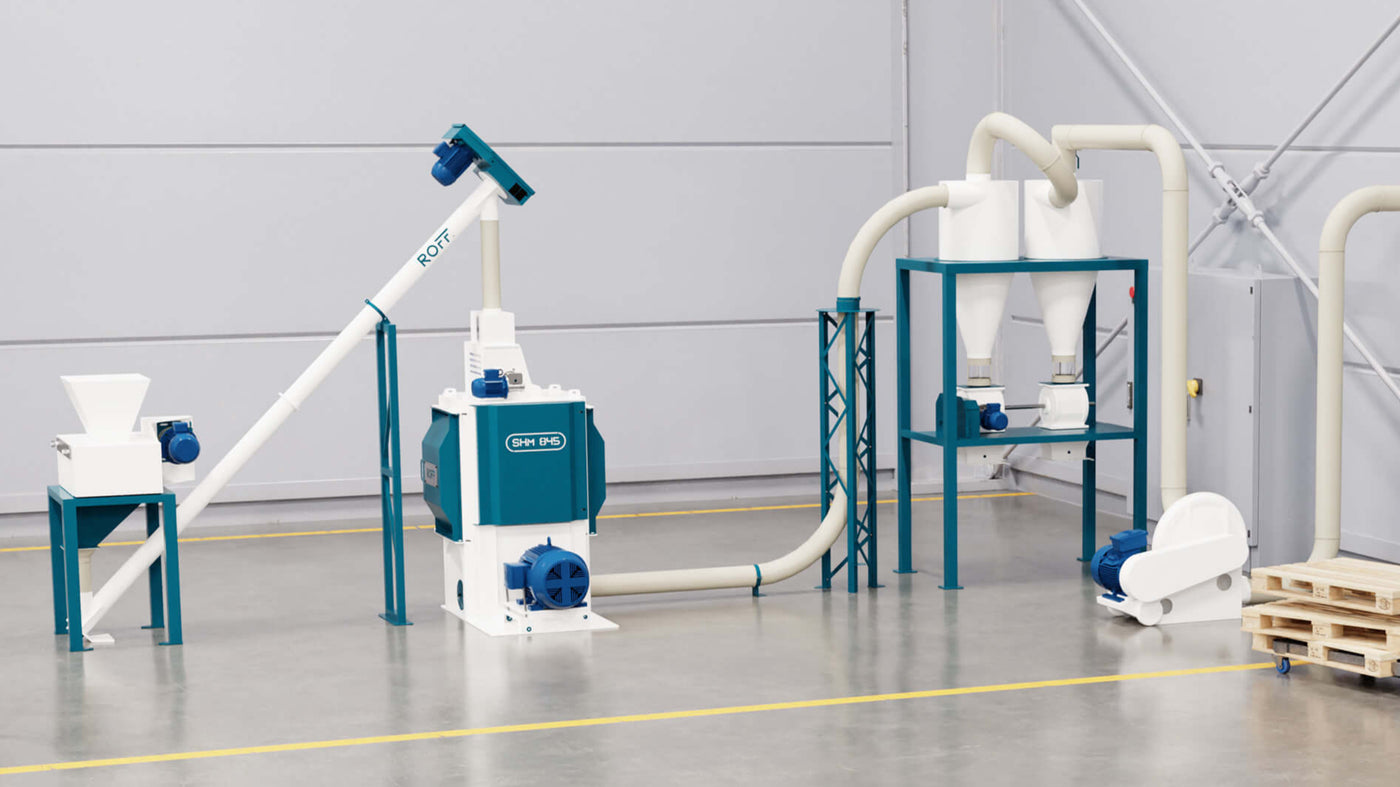

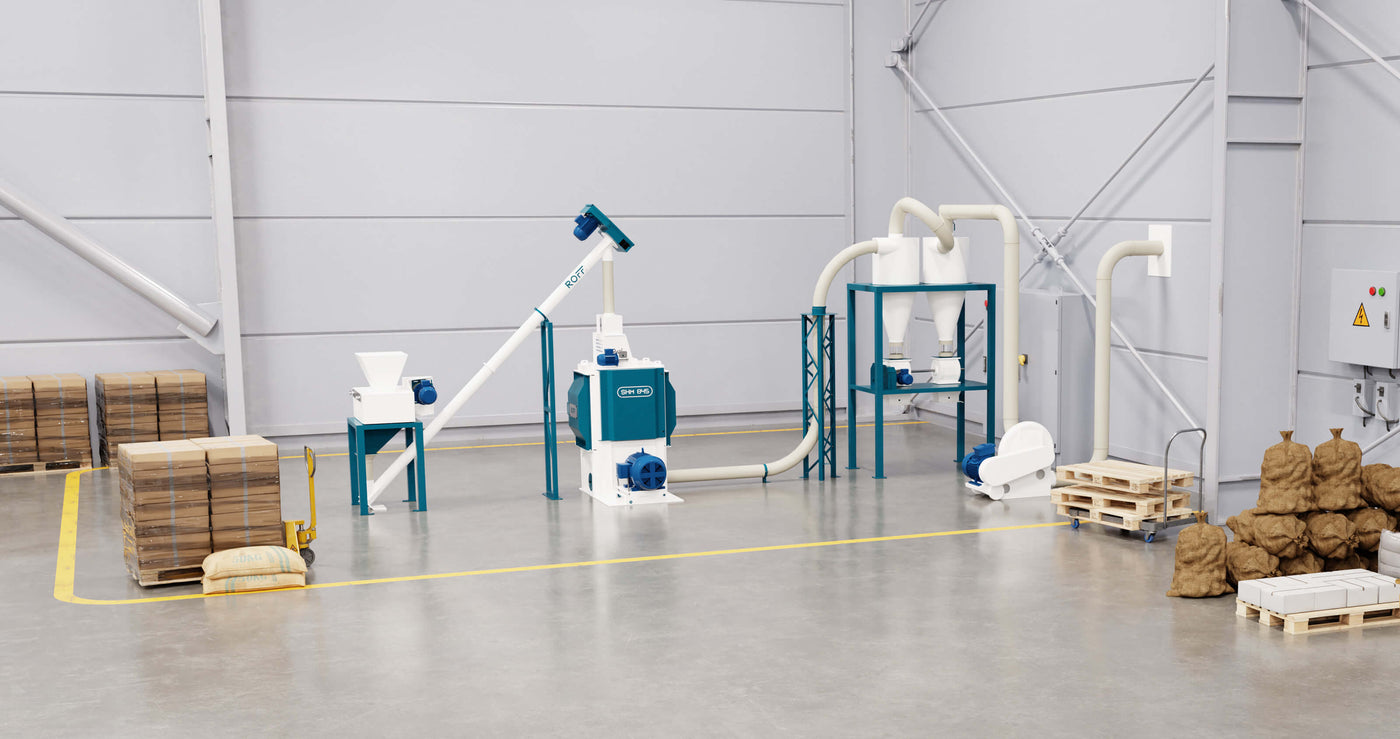

Cassava plant in warehouse
Roff cassava mill overview
Seamless business growth

What's included

  • Equipment package and components
  • Shipping to nearest port (CIF)
  • Mechanical installation
  • Commissioning and training
  • Boost your profits

    with class-leading extraction rates

  • Expand your market share with premium quality cassava products

  • Save on civil costs

    with our space-saving compact design

  • Benefit from 30+ years of industry experience. You can count on our support

The opportunity in maize–cassava blending

Maize millers are uniquely positioned to capture an emerging, high-margin opportunity by blending cassava flour into maize meal. Cassava is cheaper per kilogram than maize and has a neutral taste, so substituting 10–20 % cassava in maize meal lowers raw material costs. At the same time, it increases output volume and diversifies product lines—turning a commodity product into a composite flour with higher margins. In many markets, this composite flour is already accepted (or even mandated) in food programs, baking or snack industries. By leveraging your existing maize milling infrastructure, you can process cassava alongside maize, opening new markets, and boosting profitability per ton milled.

Cassava–maize blending and profitability: FAQ

Practical answers for entrepreneurs and millers exploring cassava–maize composite flour.

Why would I mix cassava flour with maize meal?

Blending cassava flour into maize meal helps cut raw-material costs because cassava is generally cheaper to produce and process. It also stretches maize supply, diversifies your product line, and can increase margin per ton milled.

How much cassava can I add to maize meal?

Many millers start with 10–20% cassava flour in maize meal. At this level, taste and texture are typically acceptable while savings become meaningful. Higher ratios may be possible depending on regulations and consumer preferences in your market.

Will consumers accept cassava–maize blends?

In many Sub-Saharan markets, blended flours are familiar and, in some cases, encouraged for food-security programs and manufacturers. Local testing and clear labelling help drive acceptance.

How does blending improve profitability?

Substituting cassava lowers your average input cost per ton and increases saleable output. For example, a 15% substitution can reduce cost while maintaining price, improving contribution margin per bag.

Do I need special equipment to produce blends?

You need reliable cassava milling to achieve a fine flour, then controlled blending with your maize meal. If you already run a Roff maize mill, adding the Roff Cassava Mill lets you produce both inputs in-house for consistent quality and lower logistics costs.

What are the main risks and how do I manage them?

Focus on product quality and market fit. Manage the following areas to de-risk blending and protect margins:

  • Consumer acceptance: run taste tests at 10–20% substitution; label clearly as a composite flour.
  • Quality control: maintain consistent particle size and moisture; sieve checks and moisture targets keep texture stable.
  • Accurate ratios: use calibrated dosing/scale systems to hold the blend spec (e.g., ±1%).
  • Regulatory compliance: confirm local labelling and composition rules for blended flours.
  • Process hygiene: avoid cross-contamination; keep cleaning and batch records.

With good process control and QA (sieving, moisture checks, batch logs) most risks are minimized, and the financial upside of blending can be realised consistently.

LET'S TALK

Ready to mill cassava?

Join the growing number of entrepreneurs and processors adding value to cassava across Africa.

What You Need To Supply

Essential requirements

  • Building icon

    A building

    To accommodate
    9m (L) x 4m (W) x 3.6m (H)

    Suggested building size: 30 m × 10 m × 5.5 m (for raw material and finished product)

  • Forklift icon

    Forklifts for installation

    Minimum of 2.5 ton

  • Power icon

    DB Board with power supply to Roff supplied MCC, electrical cable and installation

    (Motor Control Centre Panel)

    You need a qualified electrician to connect all motors, level switches and control panels to your DB Board. Keep in mind that the main supply should be a 150Amp moulded breaker 25kA.

    *Confirm with sales department.

Cassava Mill Brochure Image

Cassava Mill Brochure Download

Why choose Roff?

  • African roots, proven experience

    Over 34 years of designing mills for local conditions. Proudly based in South Africa with a branch in Zambia.

  • Simple and reliable

    Minimal technical knowledge required

  • Low operating costs

    Compact, power-efficient system

  • Scalable

    Build a profitable cassava flour business with confidence
