The flexible commercial system
Roff’s C-80 Maize Mill allows you to produce 5 tons of maize meal per hour. Sophisticated computer systems allow you to monitor and review capacity and extraction rates in real-time, and adjust settings as needed. Complete control means less downtime, more productivity, and more profits. The C-80 is also versatile, capable of producing two grades of maize meal, or as a grit plant.
Think compact, efficient design housed in multi-story frames featuring dust extraction and an offal collection line, and a milling capacity that will enable you to achieve success.
"Proﬁtable extraction rates, performance data and back-ups, were key in selecting the C-80 maize mill." - Carl Crous, Supa 7 Milling

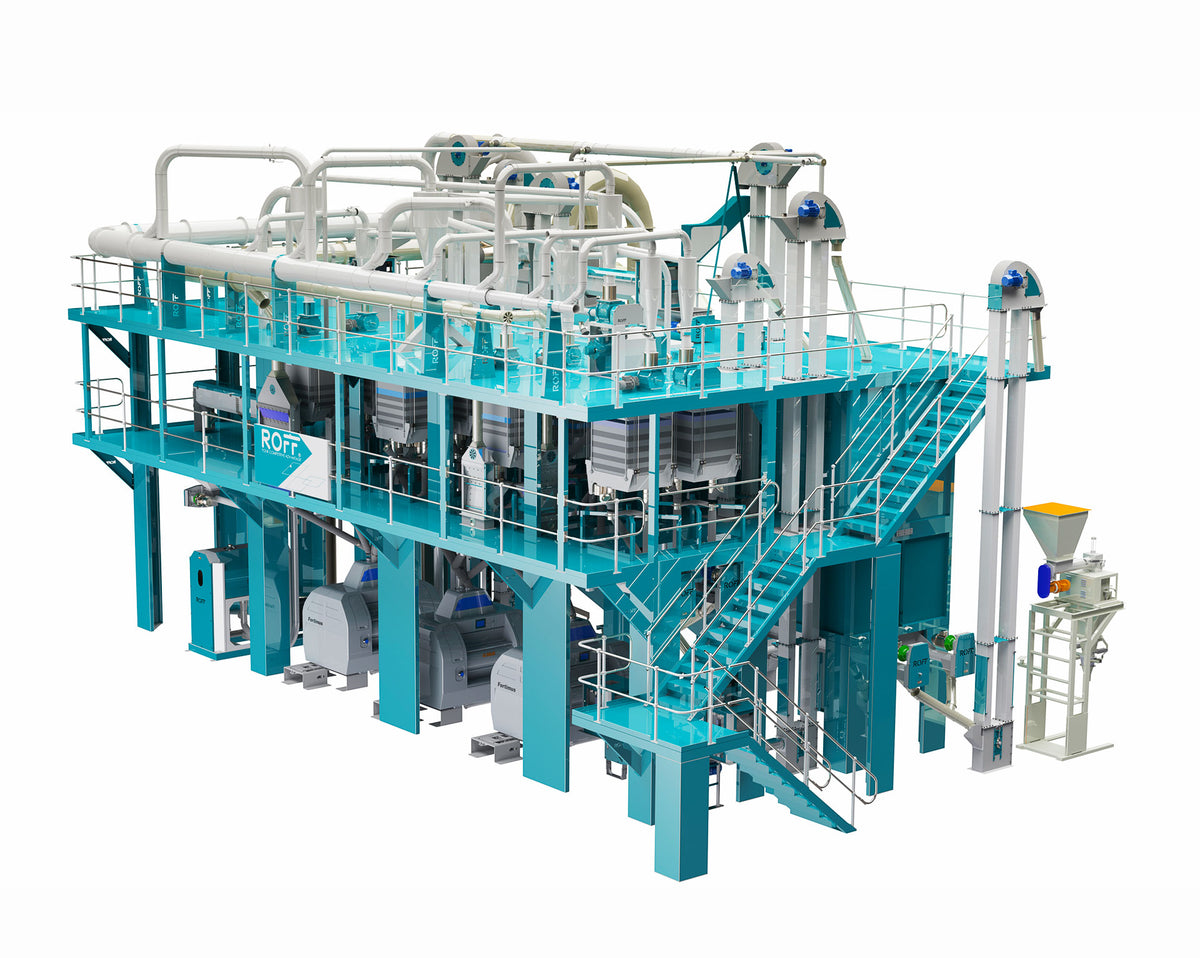

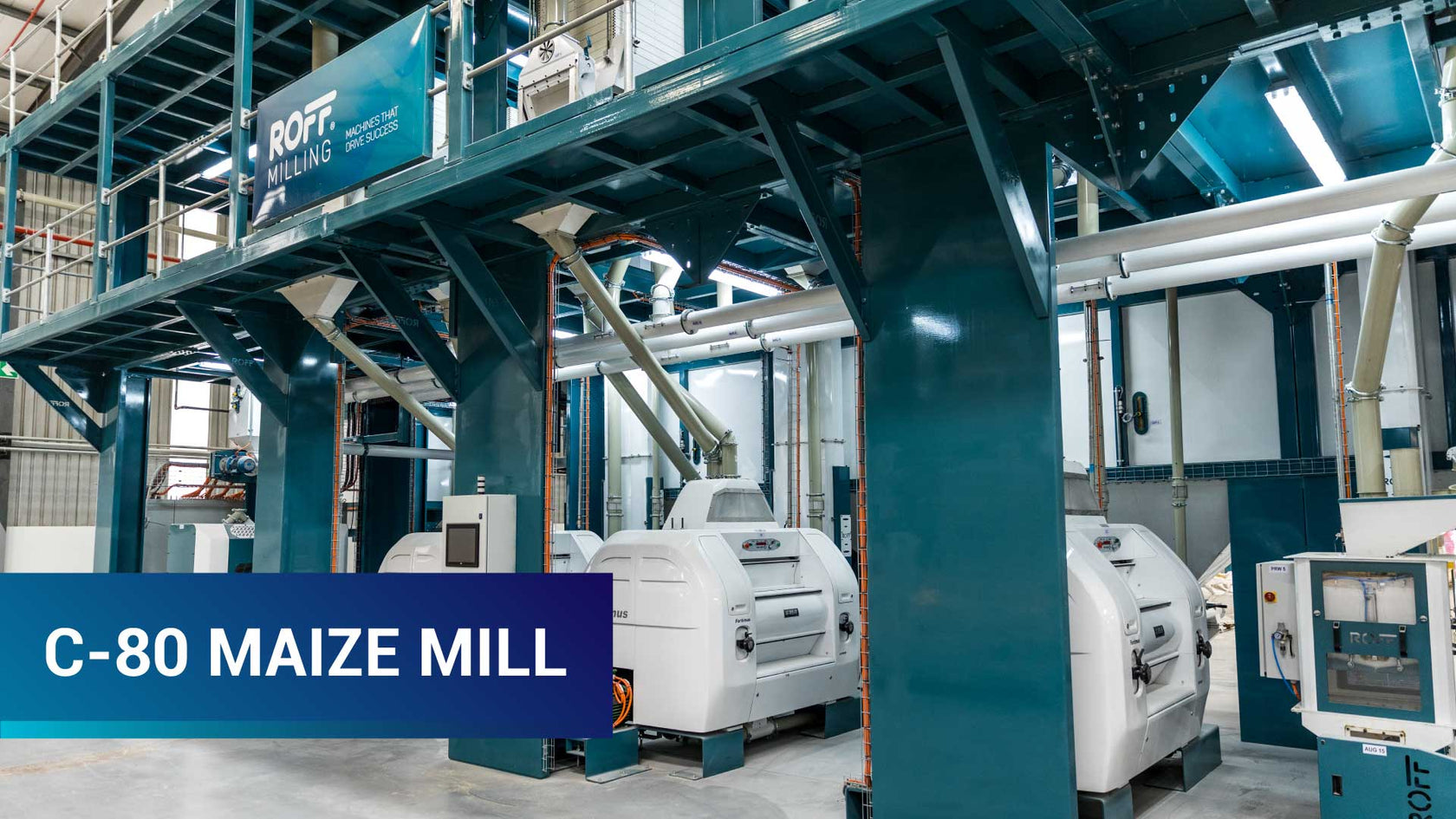

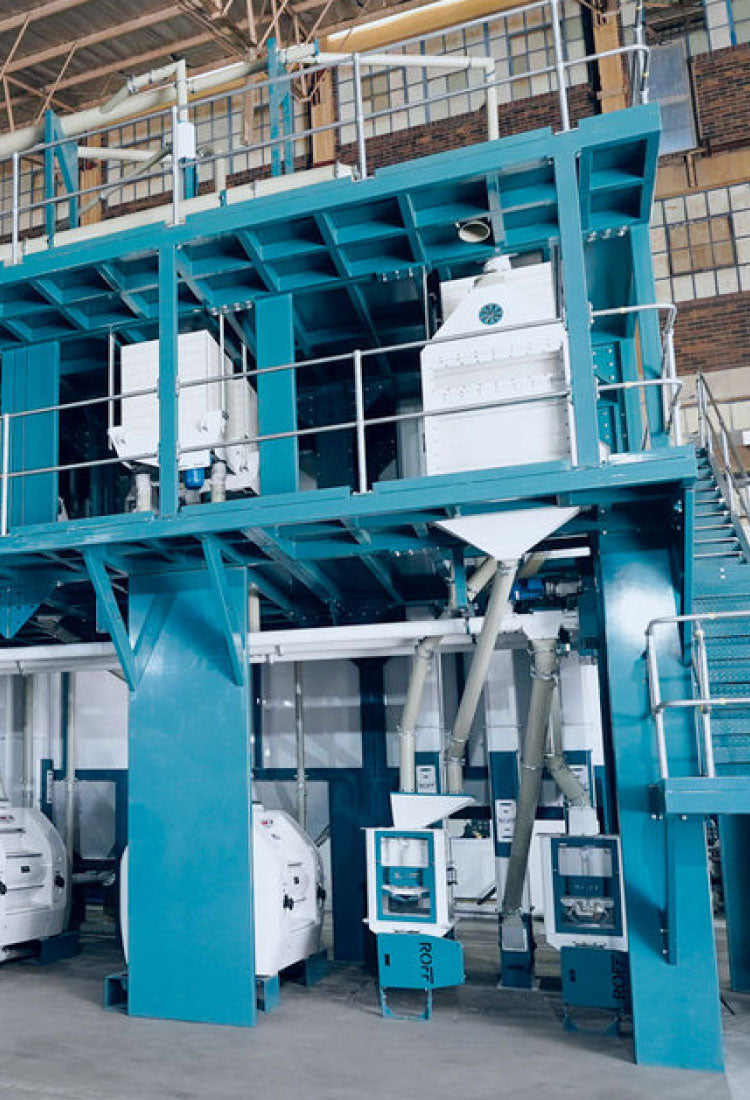

The Roff C-80 Maize Mill
5 ton/hour or
120 ton per day
Compact 20m (l) x 13m (w) x 10m (h). No specialised, expensive and long leadtime civils required.
SHORT ORDER LEAD TIME
Productive in 6 - 8 months
EXTRACTION RATE – 70%+
The C-80 Maize Milling Plant ensures an extraction rate of between 70% and 74%* in South Africa, well above the industry norm of 65% - 70%.
US$ 912,000.00 to US$ 1,029,000.00 approx.
Accurate measurement makes effective management possible
The C-80 is equipped with automated control features:
Programmable Logic Controller (PLC)

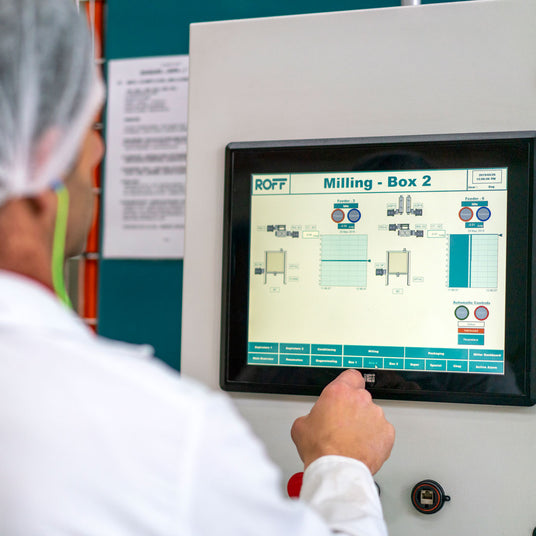

Human Machine Interface (HMI)

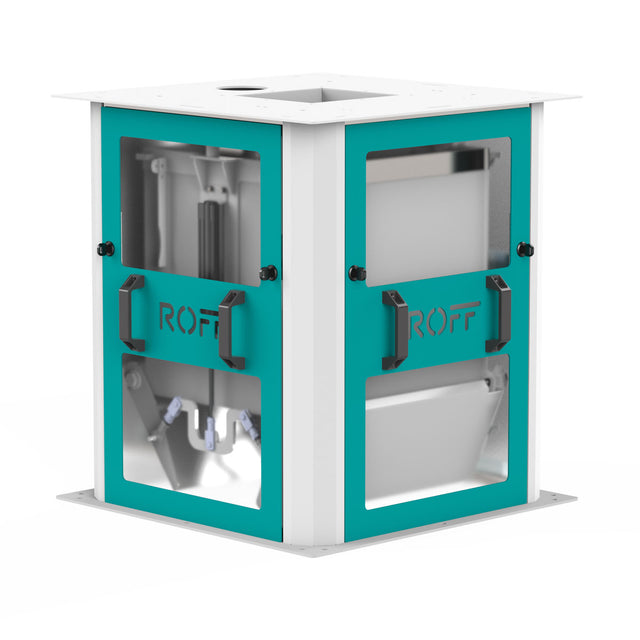

Process weighersThe process weigher supplies management data of capacity and extraction rates.
SAVE ON CIVIL COSTS AND TURNAROUND TIME

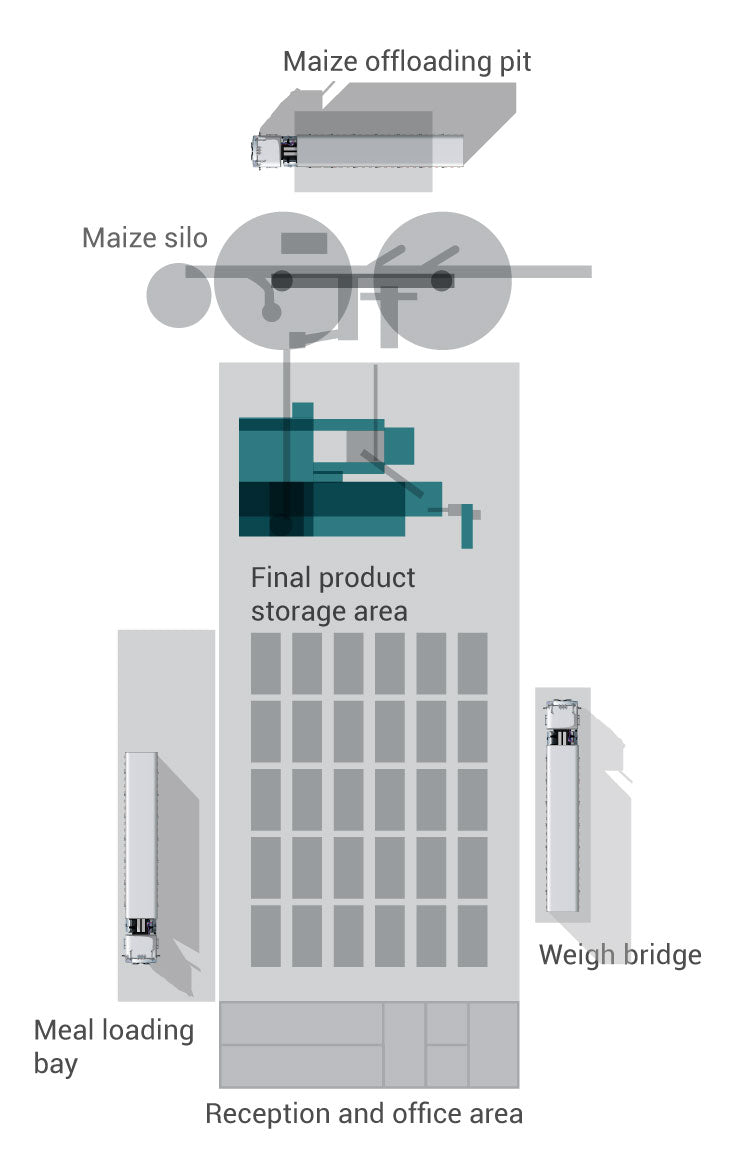

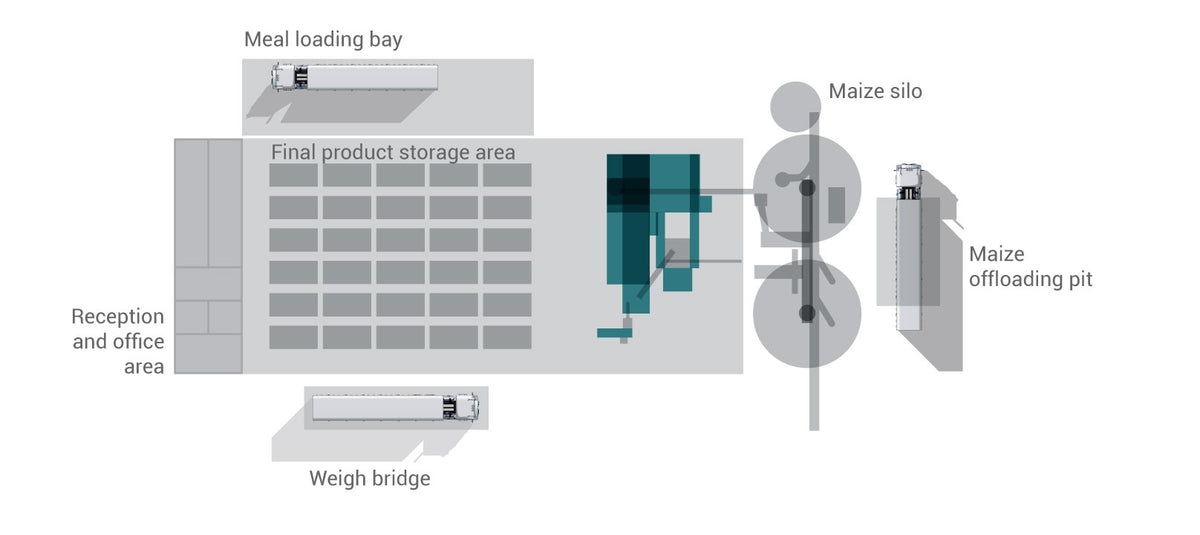

With a footprint of 20m (l) x 13m (w) x 10m (h), the C-80 5 ton/hr is compact and economic without any special structures or buildings required.

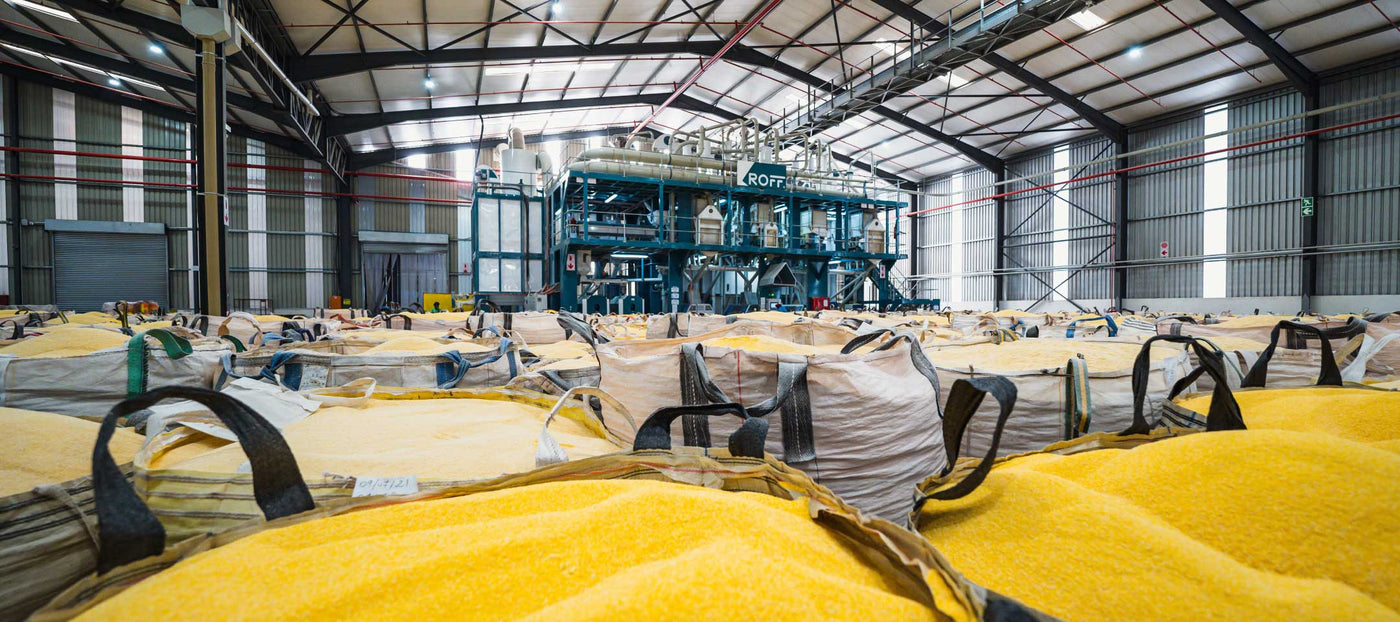

In most cases an existing warehouse can be repurposed, as long as the roof is at least 11 metres high directly above the milling area. Standard industrial concrete floors are sufficient, no special flooring is required.
BEST-IN-CLASS EXTRACTION MEANS MORE MAIZE MEAL AND MORE PROFIT
The C-80 ensures an extraction rate of between 70% and 74% in South Africa – well above the industry norm of 65% - 70%*.
* Maize quality and country dependent
To see the impact of extraction rates on your profit margin, run the numbers on the Roff Profit Calculator.

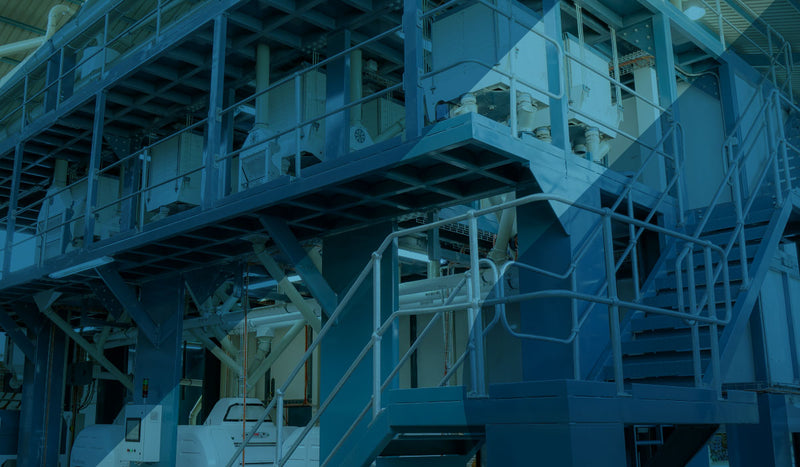

Video: C-80 5 ton/hour compact maize mill
Low dust emissions

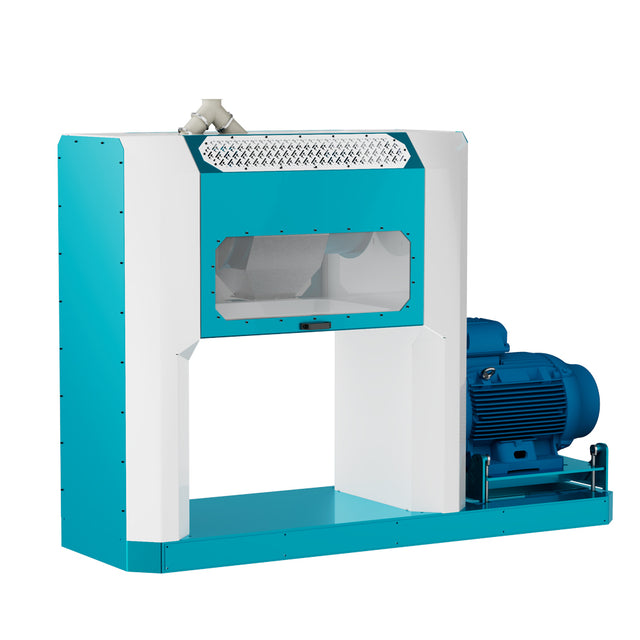

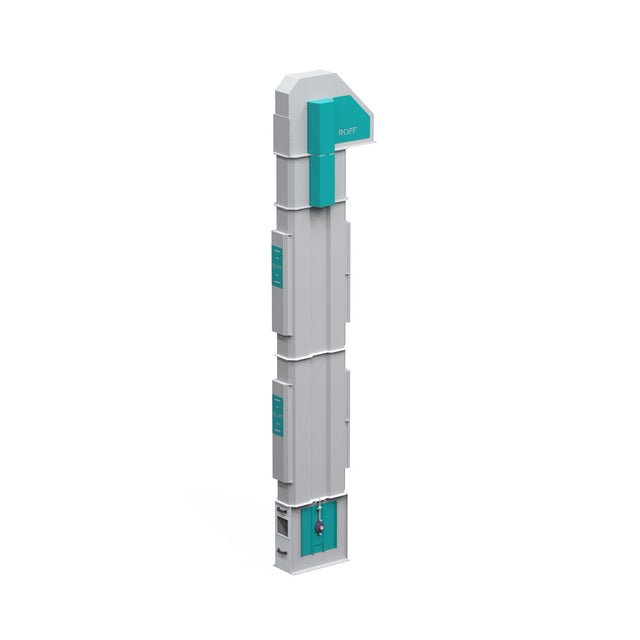

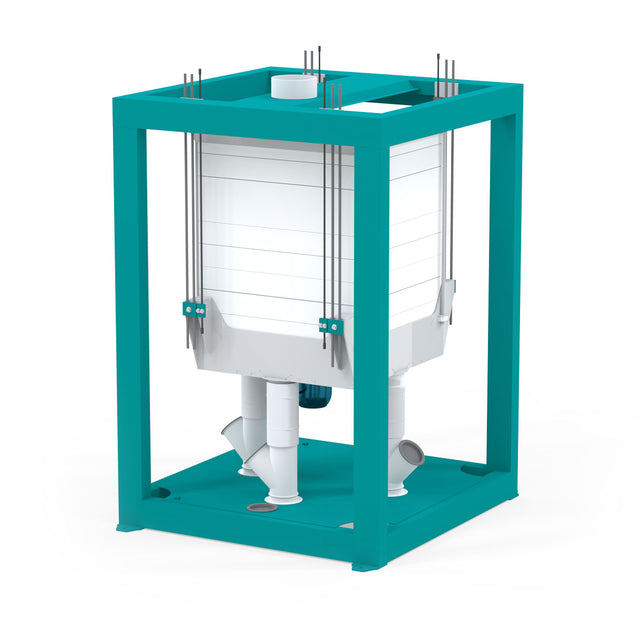

Enclosed mini sifters, pneumatic conveying on roller mills and degerminator, as well as aspiration/ventilation on bucket elevators and the maize receiving bin, result in zero dust emissions.

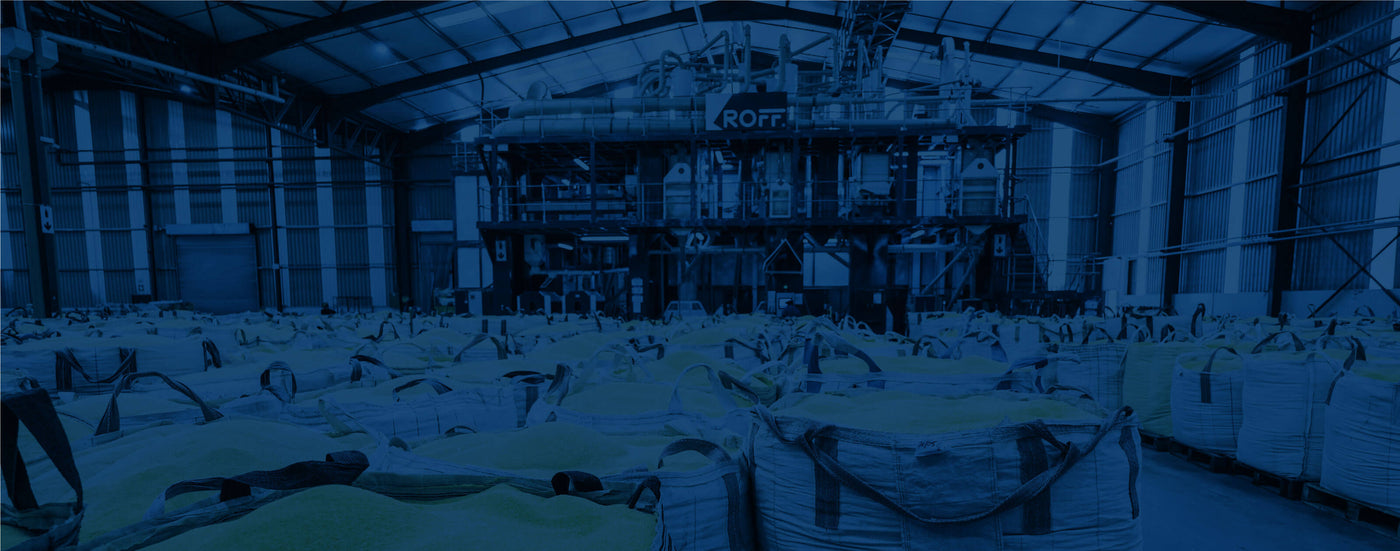

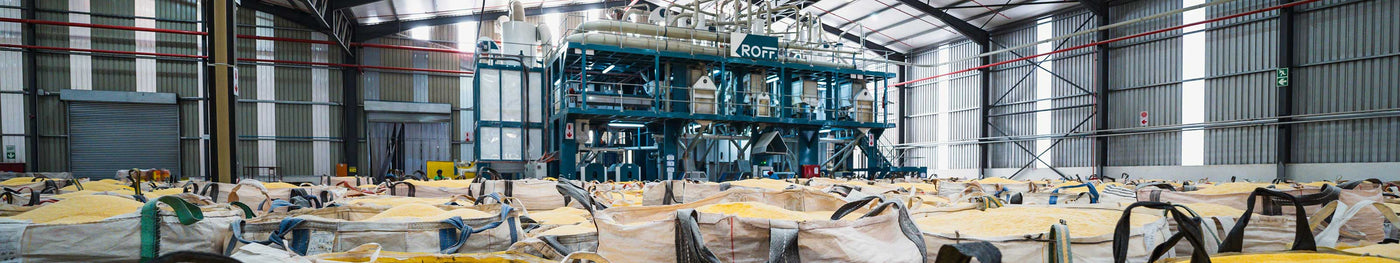

A TURNKEY SOLUTION
Roff offers a turnkey solution that
includes the mill and final product

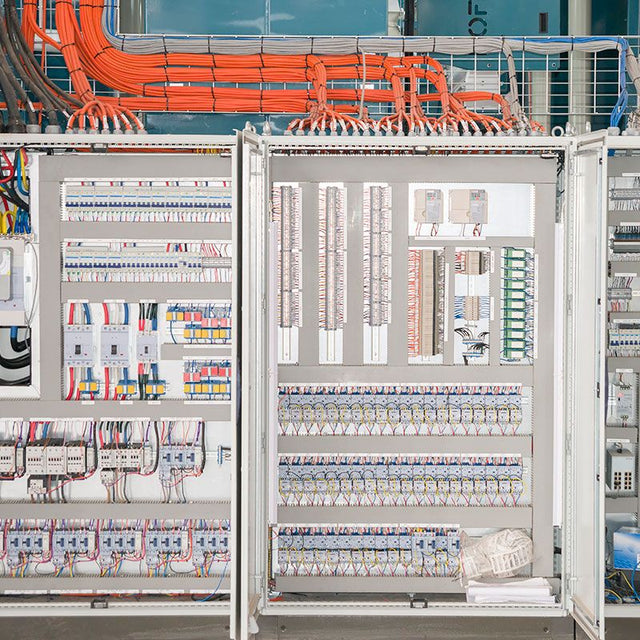

bins, panels, electrical installation
and commissioning, training and

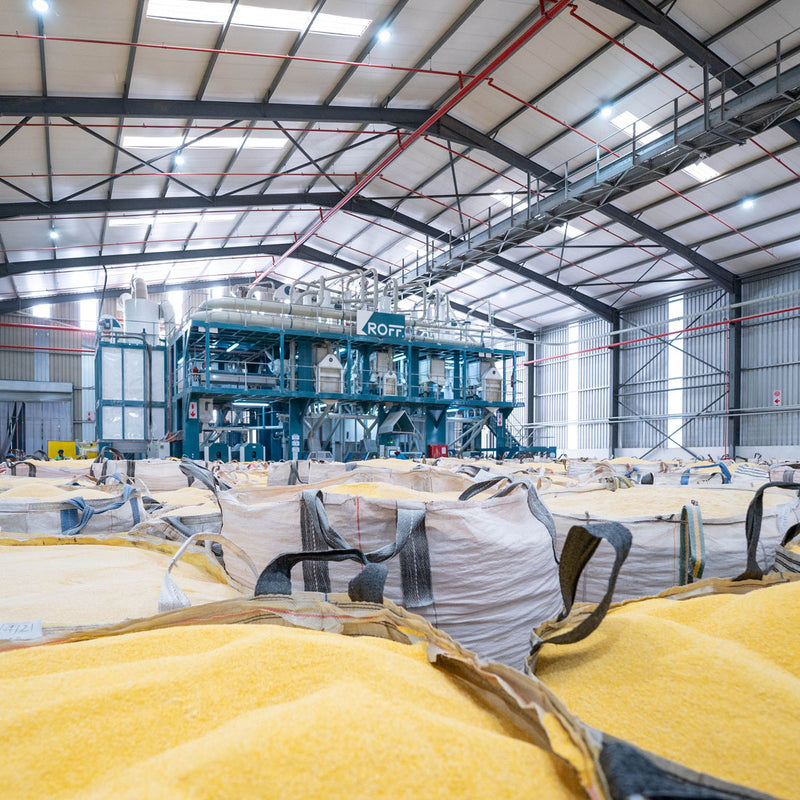

You can produce two grades of maize meal, or it can be designed
as a grit plant

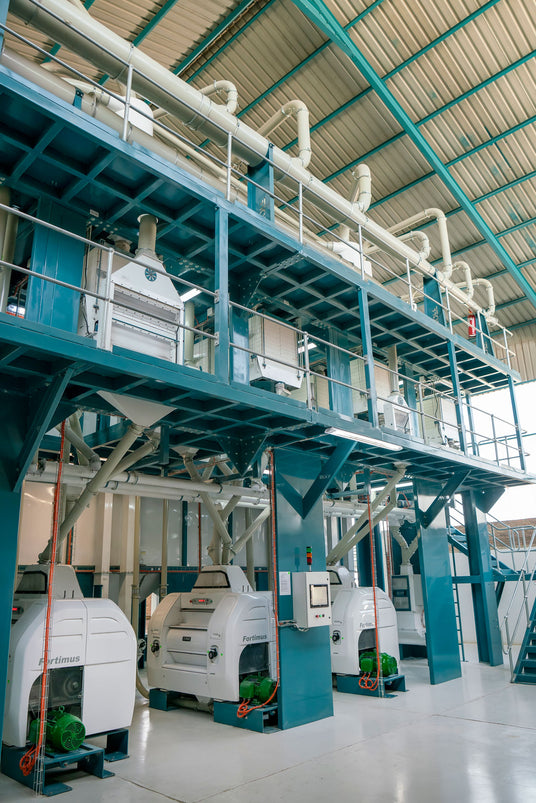

MAINTENANCE MADE EASY
Visits can be scheduled with trained and qualified Roff technicians for regular maintenance. The C-80’s built-in maintenance floors make maintenance a breeze by providing technicians with enough space and easy access to different sections of the mill.
Yes, we ship to all countries in Sub-Saharan Africa and other African countries.
It depends on where you are and how many orders we have in our queue, but the C-80 can normally be shipped in 6 - 8 months from order. Delivery details will be confirmed on order.
Yes, we give introduction training during commissioning
Yes, operators with experience is recommended due to the more complex process of a conventional mill.
No, but we will provide you or your lender with all the information needed.

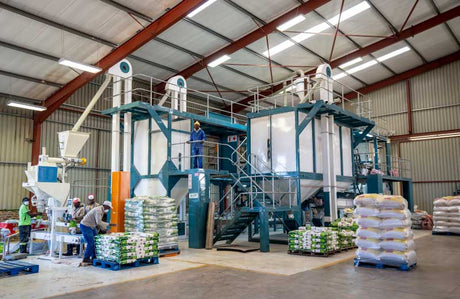

THE ROFF R-70 MILLS 5 TONS PER HOUR
Roff’s turnkey compact R-70 mill could be the competitive advantage you need, with above-industry average extraction rates, and a 120-ton per day capacity.

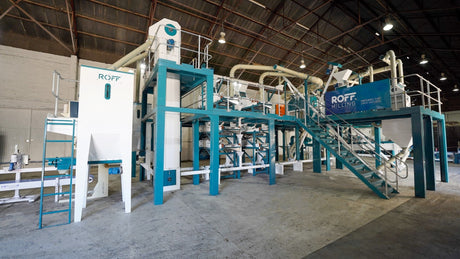

THE NEW R-40, 2 - 3 t/hr maize mill
